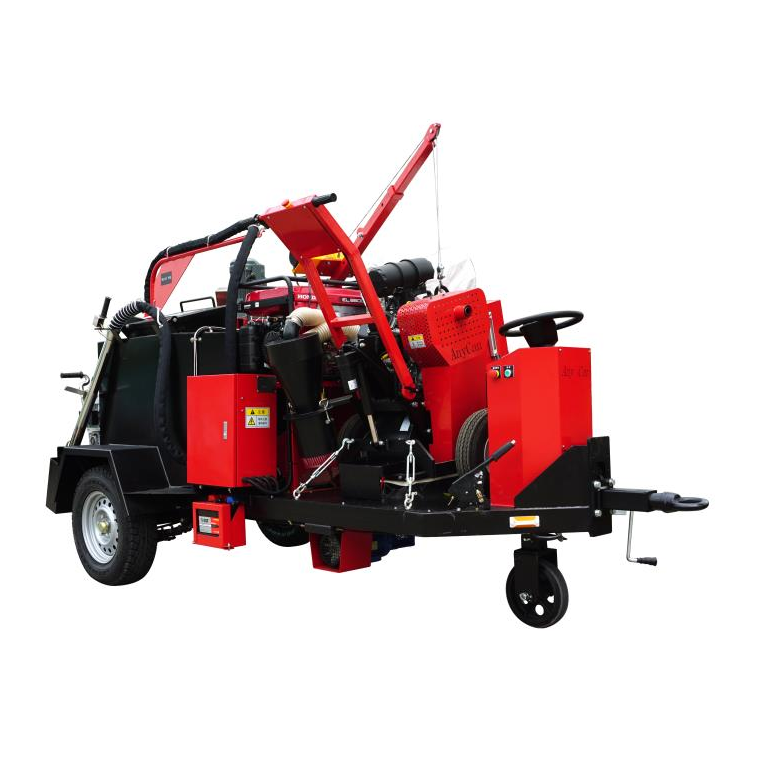

Crack Sealing Machine
ZG-400D

Trailer & Self-propelled

Kettle volume: 400L

Heat transfer oil heating

Inquiry

Product Details

Application

Crack sealing machine is a road maintenance machine for repairing the pavement cracks, which is used for heating and pouring the sealant evenly into the treated cracks to achieve the waterproof purpose. It’s composed of chassis, power, driving motors, control system, heating system, and pumping systems. It’s used with a router, vacuum cleaner, or hot air lance. It applies to the residential, municipal, highway, freeway, airport, and other pavement.


Features

1. Centralized temperature controller: Dual-digital liquid crystal temperature controller: timely display and adjust the temperature of heating transfer oil, sealant, and sealing hose.

2. Sealing wand: Electric discharge switch controls the material volume, ensure the best sealing effect. Easy to replace sealing wand make sure the best effect according to different cracks.

3. Heating transfer oil system: The sandwich design uses less oil, improves heating speed, and reduce replacement cost.

4. Special geometry chamber: The flame blow to the partition wall at an angle of 45 degrees downwards, without direct contact with a hot kettle, the air in the chamber is fully burned with a high heat utilization rate.

5. The lowest feeding height: Compact and reasonable structure, low operating position, and filling height ensure conveniently, labor-saving, and safe feeding operations.

6. Chassis: Dual shock absorber towing chassis; safe driving; Parking brake; self-propelled or and towing.

7. Engine: Reliable Honda gasoline engine-generator.

8. Agitator: Electric agitator.

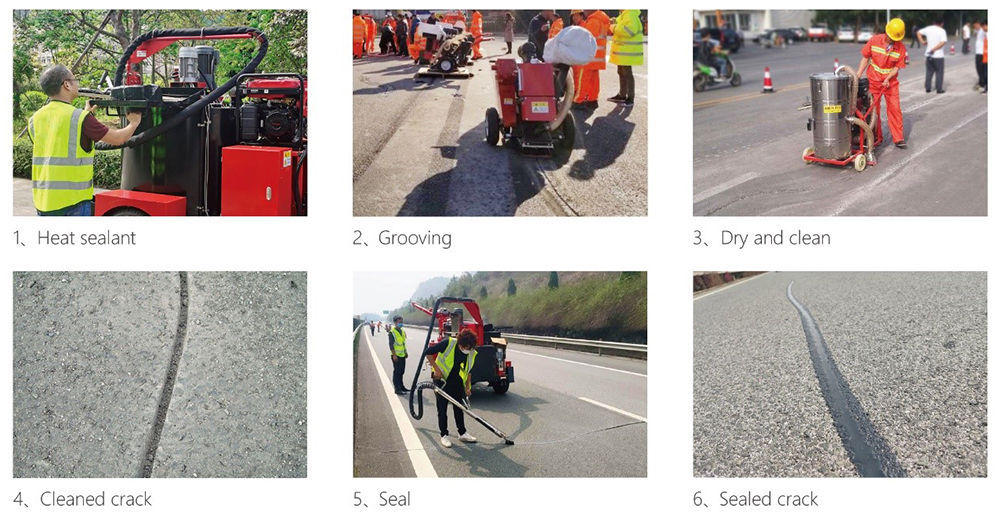

Construction process



Specifications

ModelZG-400D
Dimensions3850   x 1750 x 1950 mm, L x W x H
Net   weight1300   kg (Without crack router)
Safety   deviceParking   brake system and inertial brake system
Kettle volume400   L
Melting   rate45   min / 100 kgContinuous   melting rate20   min / 30 kg
Engine
Engine220   V Honda gasoline, (Can be connected to 220V power for heating)
StartingElectric   starting
Engine   speed3600   r/min
Displacement389   cm3
Rated   power5.5   KVA
fuel92#   gasoline
Fuel   tank capacity25   L
Continuous   working time9   h
Chassis
Rear-axle assemblyPickup   rear-axle
Feeding   pumpAdjustable-speed   motor 0.75 KW
AgitatorConstant   speed motor 0.75 KW
Self-propelledAdjustable-speed   motor 2.2 KW
Damping   systemVehicle   plate damping
Feeding system
Feeding   pumpExternal   pump, Flow:30M3/Hour, Pressure:0.56MPa
Discharge   nozzleDN50   mm
Feeding   height≤145   cm
Automatic   thermostatic control system
ThermostatOmron
ThermocoupleK   type
Heating   transfer oilL-QBB300,   95 L
Electric heated hose   and burner
Burner220   V diesel burner 100 KW/h (250000 BTU/h)
Diesel   tank60   L
Electric   heated hose220   V, length: 6 m, 270 degrees rotating
Optional
Hoist for grooving machine
