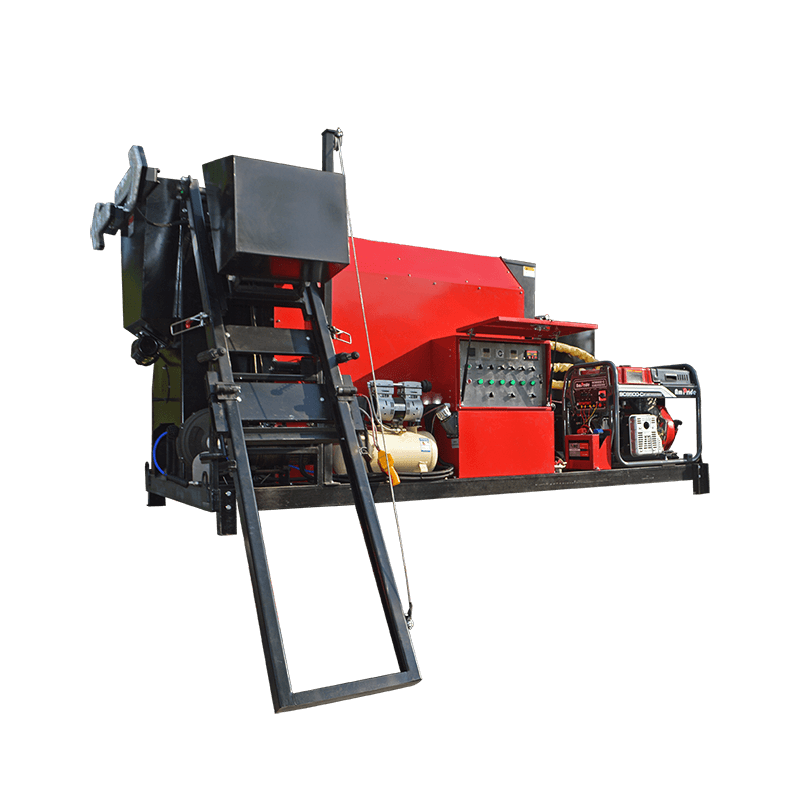

Asphalt Recycler

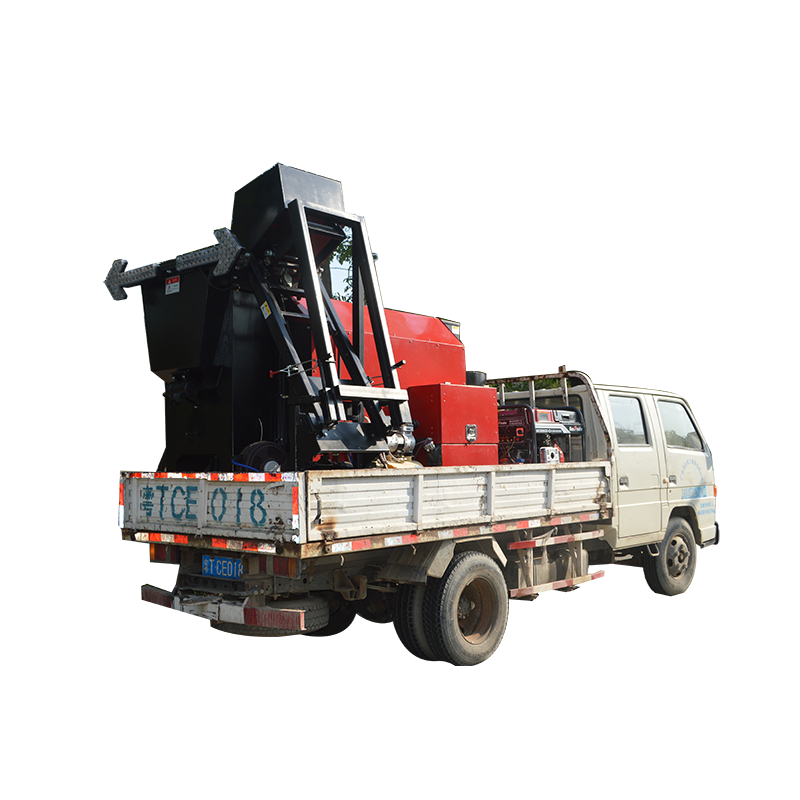

RZS-1000CZ
Truck-mounted

Drum: 360° rotating, 1000L

Burner: Riello

Inquiry

Product Details

Application

Asphalt recycler is an asphalt pavement repair equipment used for mixing, heating and recycling asphalt mixture; It’s composed of drum, heating system, controller, bitumen emulsion sprayer, hot bitumen melter, engine and chassis. It’s suitable for the repair of potholes, alligator cracks, bumps, ruts, large cracks, and other asphalt pavement distresses.


Features

1. Drum: 360-degree rotating drum, double insulation layer, hot air cycle heating;

2. Burner: Stable Riello diesel burner; It can heat new asphalt mixture and recycle old asphalt material.

3. Integrated controller: Integrated controller for drum action and heating, controlled heating time and temperature, avoid burning the material.

4. Engine: Brand engine with strong power and stable performance.

5. Chassis: 4-wheel twin-axle dual plate spring shock absorption towing chassis, equipped with handbrake and impact brake, vacuum auto tires, safe and reliable.

6. Truck-mounted: easy to transport, and convenient to operate.

7. Optional bitumen emulsion sprayer and hot bitumen melter.



Construction process



Specifications

ModelRZS-1000CZ
Dimensions3250   x 1650 x 2360 mm, L x W x H
Carriage   size needed3200   x 1650 mm, L x W
Net   weight2150   kg
LED   BoardLED   arrow board, 1000M visible
Engine
EngineThree-phase   diesel engine (AC380V)
StartingElectric
Rated   power8.5   KVA
Fuel0#   diesel
Drum
Capacity1000L
ThermostatOmron
BurnerRiello   AC220V, 210 KW
Fuel   tank60   L
Fuel0#   diesel
Heating   method360-degree   rotating hot air heating (double insulation layer)
Heating   time16   min
Drum   motor2.2   KW
Driving   modeGravity   reducer, gear drive (double reduction system)
DischargeReverse   spiral discharge
Discharge   rate5-8   min
Bitumen emulsion sprayer system
HoseHose   length:15 m, Spray lance:1.2 m
Capacity50   L
Air   compressorRated   power 2HP/ Pressure ≥ 0.8 Mpa
Hot bitumen system
Hot   bitumen capacity100   L
ThermostatOmron
Flow   controlTime   intelligent control
DeliveryElectric   heated hose
Heating   methodHeat   transfer oil indirect heating
LED   boardDC12VLED   Arrow board, 1000M visible.
