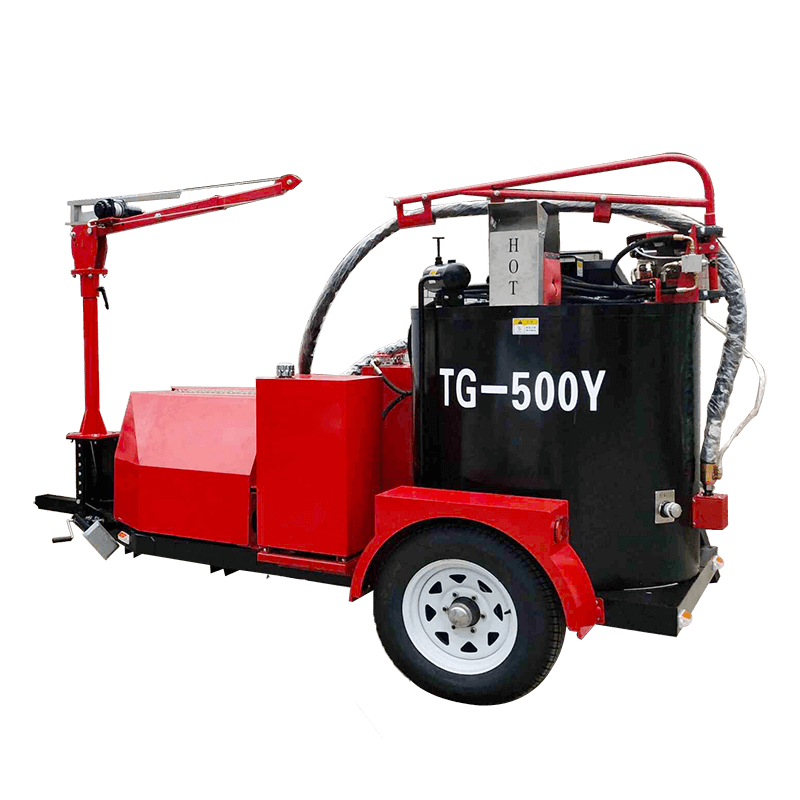

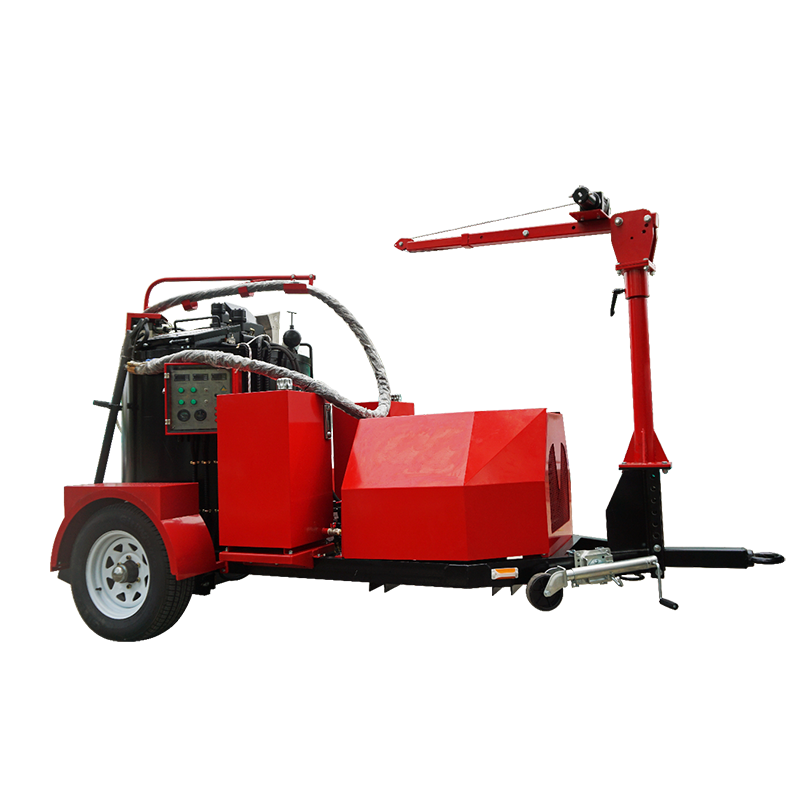

Crack sealing machine is a road maintenance machine for repairing the pavement cracks, which is used for heating and pouring the sealant evenly into the treated cracks to achieve the waterproof purpose. It’s composed of chassis, power, driving motors, control system, heating system, and pumping systems. It’s used with the router, vacuum cleaner, or hot air lance. It applies to the residential, municipal, highway, freeway, airport, and other pavement.

Features

1. Engine: Reliable YANMAR diesel engine; Hydraulic-driven stirring and pumping.

2. Centralized temperature controller: Dual-digital LCD temperature controller: timely display and adjust the temperature of heat transfer oil, sealant, and sealing hose.

3. Heat transfer oil system: Sandwich design use less oil, improves heating speed, and reduce replacement cost.

4. Special geometry chamber: Flame is blown to the partition wall at an angle of 45 degrees downwards, without direct contact with the hot kettle, the air in the chamber is fully burned with a high heat utilization rate.

5. Centralized temperature controller: Dual-digital LCD temperature controller: timely display and adjust the temperature of heat transfer oil, sealant, and sealing hose.

6. Sealing wand: Labor-saving design, electric discharge switch controls the material volume, ensure the best sealing effect under the same sealant, temperature, and road conditions.

7. Easy-to-replace sealing wand: Choose the corresponding sealing wand according to the cracks and road conditions to achieve the best sealing effect.

8. Chassis: Dual shock absorber towing chassis; Auto tires, safe driving; Parking brake.

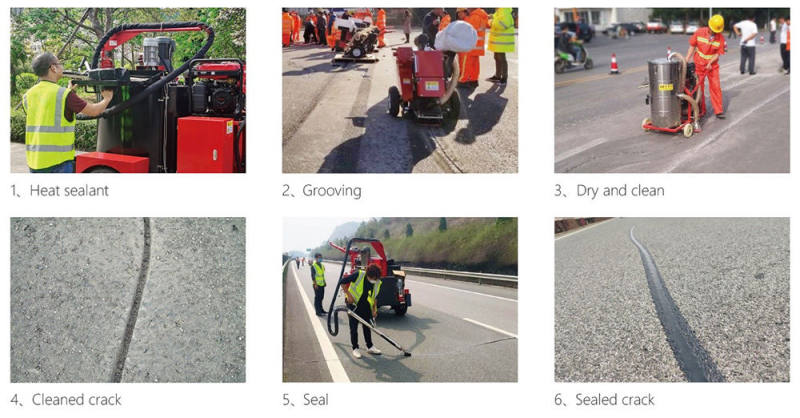

Construction process

Specifications
