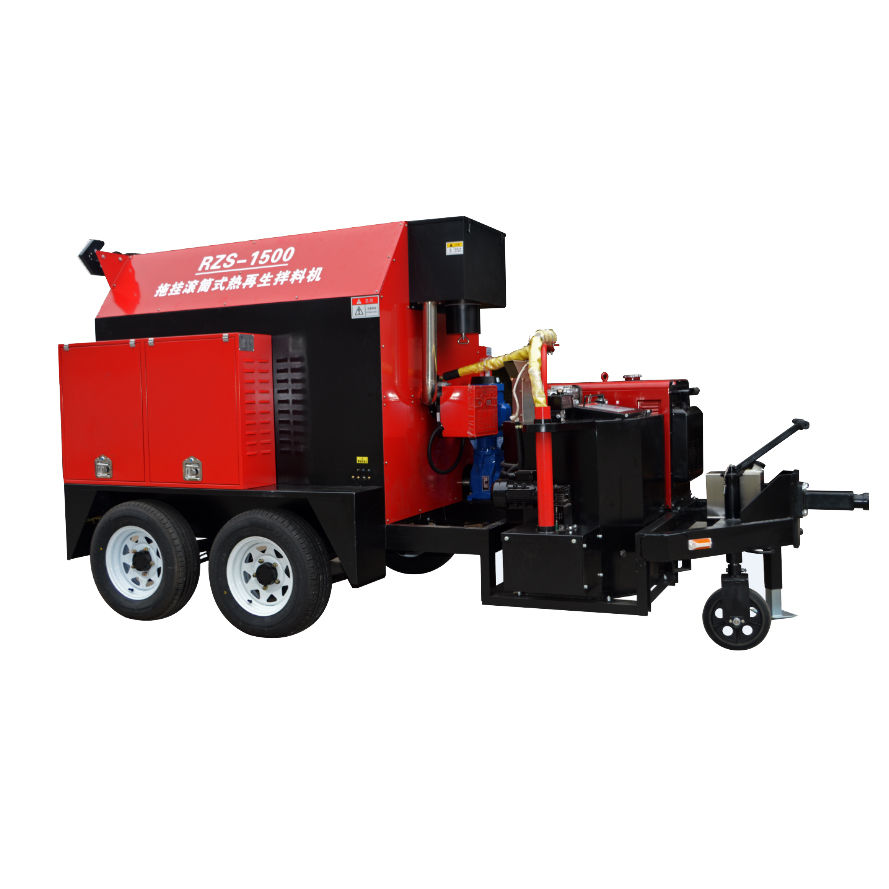

Asphalt Recycler
RZS-1500
Truck-mounted

Drum: 360° rotating, 1500L

Burner: Riello

Inquiry

Product Details

Application

Asphalt recycler is an asphalt pavement repair equipment used for mixing, heating, and recycling asphalt mixture; It’s composed of drum, heating system, controller, bitumen emulsion sprayer, hot bitumen melter, engine and chassis. It’s suitable for the repair of potholes, alligator cracks, bumps, ruts, large cracks, and other asphalt pavement distresses.


Features

1. Drum: 360-degree rotating drum, double insulation layer, hot air cycle heating;

2. Burner: Stable Riello diesel burner; It can heat new asphalt mixture and recycle old asphalt material.

3. Integrated controller: Integrated controller for drum action and heating, controlled heating time and temperature, avoid burning the material.

4. Engine: Brand engine with strong power and stable performance.

5.100L hot bitumen melter, Heat oil transfer heating.

6. Bitumen emulsion sprayer: Form a good adhesive layer between the original pavement and the new material.

7. Chassis: 4-wheel twin-axle dual plate spring shock absorption towing chassis, equipped with handbrake and impact brake, vacuum auto tires, safe and reliable.

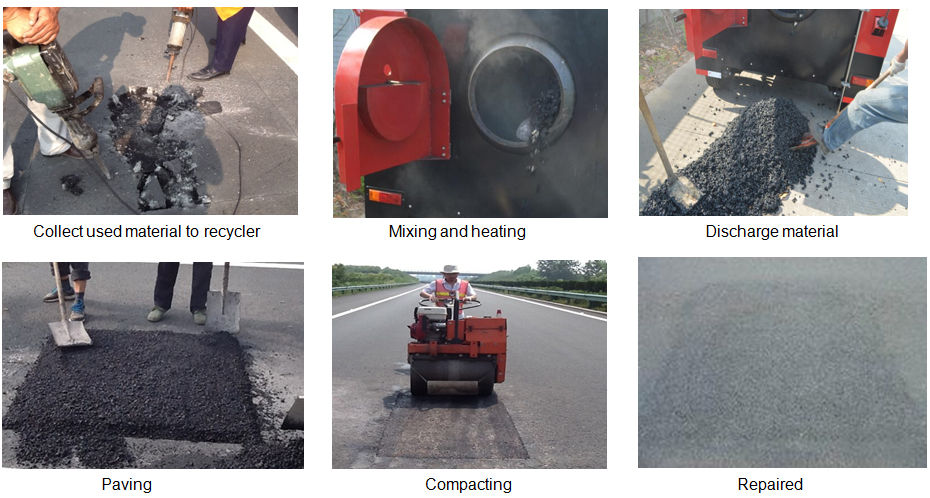

Construction process



Specifications

ModelRZS-1500
Dimensions3950 x   1850 x 2060 mm, L x W x H
Net weight2250 kg
Engine
EngineThree-phase   diesel engine (AC380V)
StartingElectric /   Manual
Rated   power8.5 KVA
Fuel0# diesel
Drum
Drum   capacity1500 L,(1000 kg in   practice)
Heating   efficiency1000 kg a   time, >3000KG/Hour
ThermostatOmron
BurnerRiello   AC220 V, 150 KW
Diesel   tank capacity100 L
Fuel0# diesel
Heating   method360-degree   rotating hot air heating (double insulation layer)
Heating   time18 min for   the first drum, 13 min for the following drums
Drum motor3.0 KW
Driving   modeGravity   reducer, gear drive (double reduction system)
DischargeReverse   spiral discharge
Discharge   rate3-5 min
Bitumen   emulsion sprayer system
HoseHose 10 m,   Spray lance 2 m
Capacity35 L
Air   compressorRated   power 2 HP / Pressure ≥ 0.8 Mpa
Hot   bitumen system
Hot   bitumen capacity100 L
ThermostatOmron
Flow   controlIntelligent   time control
DeliveryElectric   heated hose
Heating   methodHeat   transfer oil indirect heating
Agitating   wayElectric   agitating
Electric   hoist
Motor power1450 W / 220   V
Lifting   height500-1200 mm   (Adjustable)
Operating   radius1100 mm
Operating   weightDouble-rope   400 kg, Single-rope 280 kg
Driving   mode
DrivingTowing,   with handbrake and impact brake
Chassis4-wheel   twin-axle double plate spring shock absorption
LED boardDC12V LED   arrow board, 1000 m visible
Towing   speed≤90 km/h
TyreVacuum   tyre
