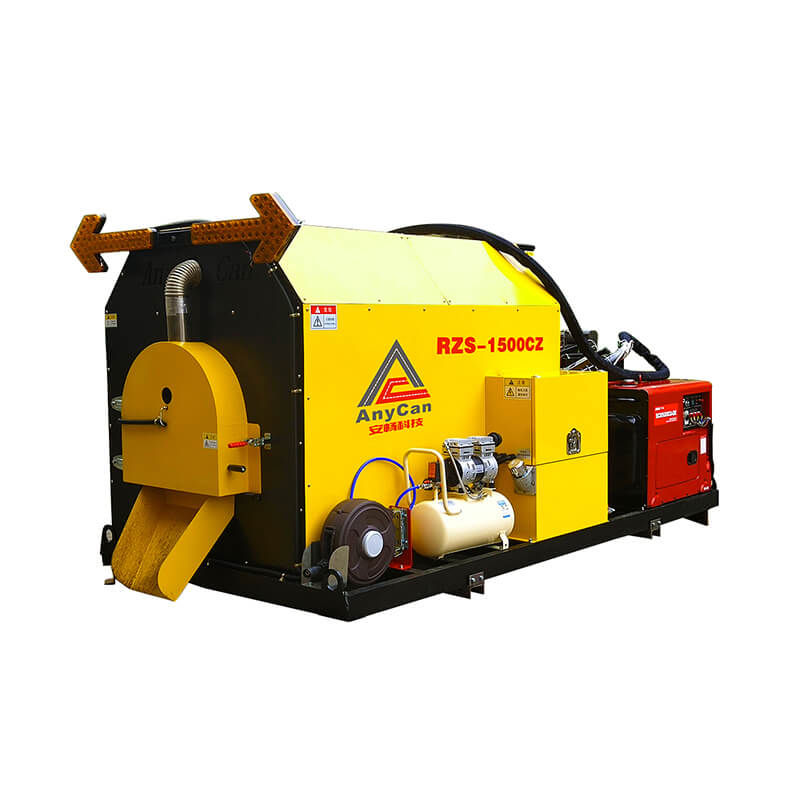

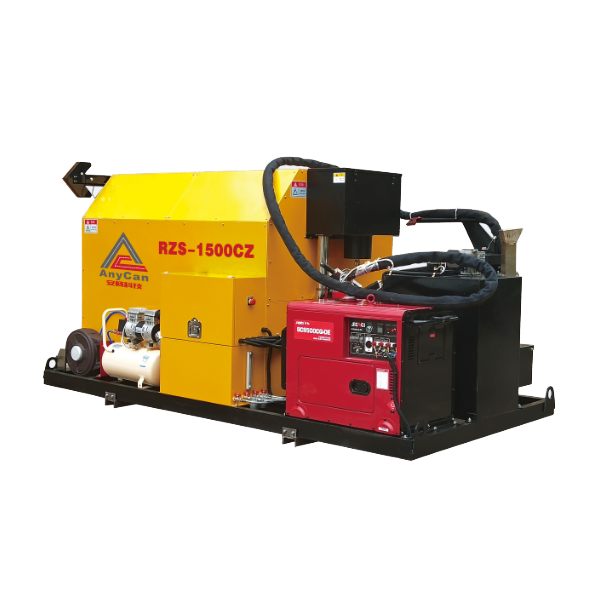

Asphalt Recycler

Drum: 360° rotating, 1500L

Burner: Riello


Product Details


Asphalt recycler is an asphalt pavement repair equipment used for mixing, heating and recycling asphalt mixture; It’s composed of drum, heating system, controller, bitumen emulsion sprayer, hot bitumen melter, engine and chassis. It’s suitable for the repair of potholes, alligator cracks, bumps, ruts, large cracks, and other asphalt pavement distresses.


1. Drum: 360-degree rotating drum, double insulation layer, hot air cycle heating;

2. Burner: Stable Riello diesel burner; It can heat new asphalt mixture and recycle old asphalt material.

3. Integrated controller: Integrated controller for drum action and heating, controlled heating time and temperature, avoid burning the material.

4. Engine: Brand engine with strong power and stable performance.

5. Truck-mounted: easy to transport, and convenient to operate.

6. Bitumen emulsion sprayer: Form a good adhesive layer between the original pavement and the new material.


Construction process



Dimensions3250   x 1650 x 2360 mm, L x W x H
Carriage   size needed3200   x 1750 mm, L x W
Net   weight1850KG
LED   boardLED   arrow board, 1000 m visible
EngineThree-phase   diesel engine (AC380V)
StartingElectric   / Manual
Rated   power8.5   KVA
Fuel0#   diesel
Drum   system
Drum   capacity1500   L, (1000KG in practice)
Heating   efficiency1000KG   a time, >3000KG/Hour
BurnerRiello   AC220 V, 150 KW
Diesel   tank capacity60   L
Fuel0#   diesel
Heating   method360-degree   rotating hot air heating (double insulation layer)
Heating   time18   min for the first drum, 13 min for the following drums
Drum   motor3.0   KW
Driving   modeGravity   reducer, gear drive (double reduction system)
DischargeReverse   spiral discharge
Discharge   rate3-5   min
Bitumen   emulsion sprayer system
HoseHose   10 m, Spray lance 2 m
Capacity35   L
Air   compressorRated   power 2HP / Pressure ≥ 0.8 Mpa
Hot   bitumen / Crack sealing system
Hot   bitumen capacity100   L
Flow   controlTime   intelligent control
DeliveryElectric   heated hose
Electric   heated hose7   m (for crack sealing)
Heating   methodHeat   transfer oil indirect heating
